Introduction:

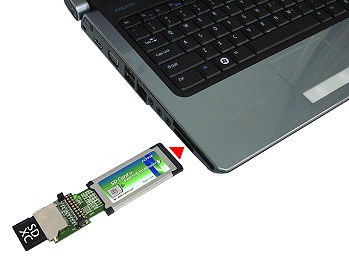

SD card to Expresscard adapter design for high speedSD cards.
You can easily add SDcard to your notebook with 34/54mm ExpressCard slot.

Specification

Compliant with SD Memory Card Specification VersionCompliant with USB2.0 specificationCompliant with SD3.0 specification; Backward compatible to SD2.0/SD1.1
Support SDXC card up to 2TB
SD/Mini-SD/Micro-SD/SDHC/SDXC
Support Bus Speed, frequency up to 208MHz
SDR12/SDR25/SDR50/SDR104/DDR50 mode
Support Mac OS

System Requirements:

Notebook or desktop PC with an available ExpressCard slot.
Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/
XP (32-/64-bit) SP3 or later Window XP SP3
or Mac OS

Dimensions: 34 x 75 x 5mm
Weight: 35 g

Product: EC7836-U2 ver1.1 test environment: Module: SONY VGN-SR56E System: windows XP SP3 32bit Test Tools : DiskMark 2.2 CPU: Intel® Core™2 Duo CPU P8700 @ 2.53GHz RAM : 2.0GB Graphics card: ATI Mobility Radeon HD 4570 Driver: SDA Standard compliant SD Host Controller
EC7836-U2	SanDisk SDHC class4 4GB	TOSHIBA SDHC class10 4GB	TOSHIBA SDHC class UHS-1 8GB	Kingston SDHC class4 32GB
Read (MB/S)	10.14 MB/S	18.70 MB/S	27.78 MB/S	18.66 MB/S
Write (MB/S)	5.086 MB/S	16.99 MB/S	19.90 MB/S	14.33 MB/S

EC7836-U2 Package Contents

EC7836-U2
(ExpressCard1.0 to SDXC / UHS-I Adapter) x1

EC7836-EC03 (engineering sample) Package Contents
EC7836 (ExpressCard1.0 to SDXC / UHS-I Adapter) x1 (engineering sample)	EC03 enclosure (Expresscard reader 2.0 to USB3.0) x1
Y02-U3-150 (USB 3.0 A Male to Micro B Male 150cm Cable) x1	P25AMTDC60 (USB A Male to DC Power Cable) x1

EC7836-EC03 module (engineering sample) Package Contents
EC7836 (ExpressCard1.0 to SDXC / UHS-I Adapter) x1 (engineering sample)	EC03 module (Expresscard reader 2.0 to USB3.0) x1 with PCB Pad x1
Y02-U3-150 (USB 3.0 A Male to Micro B Male 150cm Cable) x1	P25AMTDC60 (USB A Male to DC Power Cable) x1
