FPC Easy made-to-order system
USD 1200* for your own FPC!

  • Introduction
  • Order Flow
  • SD Card Interface selection
  • SIM / SmartCard Interface selection

  Introduction:





    Three steps for your original FPC!
  1. Choose “Host Side” Plug interface.

  2. Choose “Card Side” Connector interface.

  3. Decide to tal length. (max 50cm)

  4. * USD 1200 is NRE fee for B1912A standard case. Price may vary on total length and width
    * When we develop as standard product, NRE is FREE!
    * NRE includes 2 pcs samples and shipment fee.
    * Please refer price list and component list for NRE.
    * Bplus will support you to choose connectors!
    * Unit Price will be provided separately..




  Order Flow:

  1. Please choose specifications (interfaces, total length etc.)
    Contact to Bplus for assistance, if necessary.
    -  sales@bplus.com.tw

    [OEM info] SIM, SD extension product components design info
    Plug Form (L) : Connector (R) : Length Material
    SIM plug
    Micro SIM plug
    Nano SIM plug
    SD plug
    Micro SD plug
    FFC Conn
    (Other)
    SIM conn (Push-Pull)
    SIM conn (Push-Push)
    SD conn (Push-Pull)
    SD conn (Push-Push)
    microSD conn
    FFC Conn
    (Other)
    4~50cm Dupont
    ShengYi


    Vendor Material Flammability RoHS Operating temp. Solder shock Peel Strength Thickness Surface Resistance
    DuPont FPC UL94 V-0 Yes UL 796
    180oC
    288oC / 10sec >1.8 N/mm 0.1mm >E16Ω
    ShengYi UL94 V-0 Yes / 288oC / 10sec >1.2 N/mm 0.1mm >105 MΩ
    Bplus FFC VW-1 Yes AWM 20624
    80oC
    / / 0.1mm /
    * Standard material = ShengYi

  2. Contact to our sales:  sales@bplus.com.tw
    Mass Production Schedule and Quantity.
    - ex. 100pcs/month
    Bplus provide FREE consultant service.
    - Discuss to blush-up specification together.
    - Bplus provides rough Product Image.
    - More accurate NRE.


  3. Quotation
    Bplus will provide
    - Final NRE: including 2pcs samples & shipping fee.
    - Unit Price
    - Final Product Image (PDF)
    - 3D Drawing (PDF) : if necessary

  4. Order & Payment
    Payment: Paypal or Bank Wire

  5. Wait for product: Standard 3 weeks
    One weeks for FPC design – Check together
    Two weeks for manufacturing. (PCB & SMT)




   SD Card - Interface selection: NRE 350*1

SD Host Side SD Card Side
A. SD socket
Push-Pull type

B. SD socket
Push-Push

C. microSD socket
Clam Shell

D. FPC 10pin
0.5mm Pitch

1. microSD

(None) ex. B1912A
12cm
ex. B1809A
9cm
ex. B1908B*2
8cm
(DB19)
2. FPC 10pin
0.5mm Pitch
(None) (None) (None) (None)

*1 : USD 350 is NRE fee for B1912A standard case. Price may vary on total length and width.
NRE includes 2pcs samples and shipping fee.

B1912A: Total length = 12cm, Width=3cm


*2 : FPC only. DB19 is NOT included. Unit Price is USD8.


Order Example, microSD: NRE USD350

SD Host Side: 2. FPC 10pin, SD Card Side: C. microSD socket, Length: 9cm
* PCB and the connector not included.
* NRE includes 2 samples and shipping fee.








   SIM / SmartCard - Interface selection: NRE 350*1



SIM / SmartCard Side
SIM / SmartCard
Host Side
A. SIM Slot Push-Pull

B. SIM Slot Push-Push
C. FPC 6pin 1mm Pitch

1. SIM Outside Notch

B3612A
12cm

B3616B
16cm

B1216A
16cm

B1226B
26cm

B4516A*2
16cm
(DB43)

2. SIM Inside Notch

B1612A
12cm

B1605B
5cm

(None)

B4116A*2
16cm
(DB32)

3. microSIM Outside Notch

Samsung Galaxy

B3014A
14cm

B4215A
15cm

B4010A*2
10cm
(DB43)

4. microSIM Inside Notch

B2040A
40cm

B2014B
14cm

(None)

B4616A*2
16cm
(DB32)

5. nanoSIM Outside Notch

B4714A
14cm

(None)

B4814A*2
14cm
(DB43)

6. nanoSIM Inside Notch

iPhone5 / 5s
New iPad / iPad mini

B3114A
14cm

(None)

B3214A*2
14cm
(DB32)

7. FPC 6pin 1mm Pitch

(None)

(None)

B4490A
(FFC 90cm)

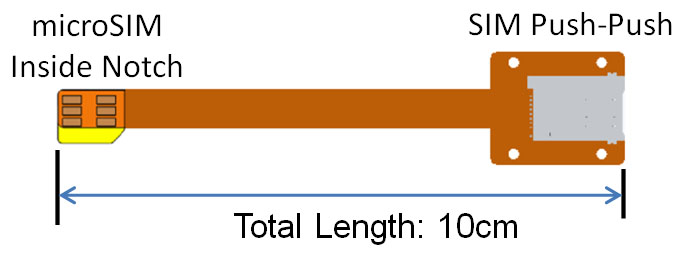

Order Example, microSIM – SIM Push-Push Slot: NRE USD350

SIM Host Side: 4.microSIM Inside notch, SIM Card Side: B.SIM Push-Push slot, Length: 10cm
* NRE includes 2pcs samples and shipping fee.
