P15S-P15F
M.2(NGFF)-mPCIeアダプタ





Brief Taiwan 1 Taiwan 2 China
Selection Guide Taiwan 1 Taiwan 2 China
Web-shop


概要


The P15S-P15F adapter is designed for desktop/Laptop PCs that convert mini PCI-E cards.
 You can insert your USB or PCIe-e type minicard to this adapter.. Also, WiFi& Bluetooth Combo card such as Intel® Dual Band Wireless-AC 7260 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.



    機能一覧


  • Supports system bus interface: PCIe&USB2.0.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.
  • Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
  • No drivers needed for this mini PCI-E to M.2 Card Adapter
  • Support SIM slot for 3G card
  • Build in 5V to 3.3V power switch(For 5V DC Jack)
  • 0°C to +80°C



    仕様一覧


  • PCI Express base Specification 1.1 (Up to 2.5Gpbs)
  • M.2 Specification Revision 0.9 Socket 1
  • Support 2230 M.2 Card dimension.
  • Support M.2 Key A-E Card Type.

      Requirements


  • M.2(NGFF) card slot (Socket 1)





  Web-shop


P15S-P15F 連絡先

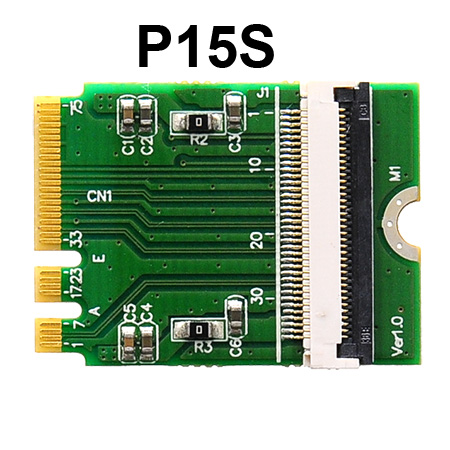

P15S x1

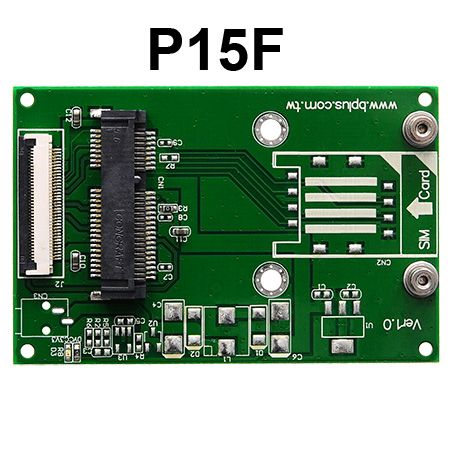

P15F
x1
FFC0536P-010A (FFC cable 10cm) x1
FFC0536P-020A (FFC cable 20cm) x1
FFC0536P-030A (FFC cable 30cm) x1

専用ネジ x2
専用平ネジ x1

Buy Related Items


P11S-P11F
L12S
P14S-P14F
P16S-P16F
