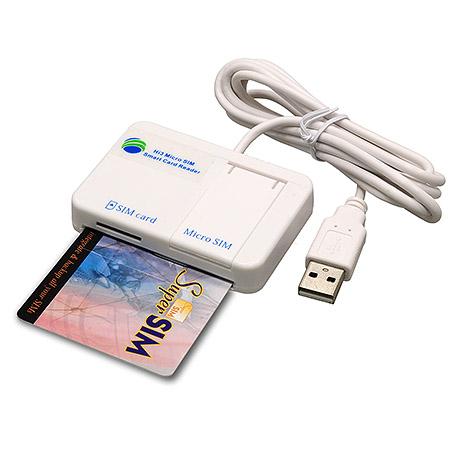

  USB-MCR3513
スマートカードリーダ用モジュール







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Software Taiwan 1 Taiwan 2 China
Web-Shop

        Features


Ergonomic and compact design Fully compatible with SCM family
EMV Level 1 certified
Compliant with major smart cards and industrial standards
Suppprot standard Card/ SIM card and Micro SIM card



        Typical Applications


The MCR3513are suitable for a wide range of applications for government applications as well as for enterprise and home usage.

Due to its design, the readers are also ideally suited to be bundled with smart cards and software to support large scale projects roll outs. Typical pplications areas of the

MCR3513 are electronic ID, social security and loyalty programs, e-Couponing, secure network log on,
e-Banking as well as online shopping and gaming activities.



Technical Data

Interfaces Full speed USB 2.0 (12 Mbps)
USB Bus powered device
Smart Card / PSAM Card
(contact)
T=0, T=1 protocol support
Memory card support through SCM MCARD API
Communication speed up to 420 kbps (PPS, Fl parameter)
Frequency up to 8MHz (PPS, Dl parameter)
Support ISO 7816 Class A and AB smart card
8 contacts - ISO 7816 location
Friction contact, 100,000 insertions
Optical One green LED
API Software CT-API (through wrapper on top of PC/SC)
Synchronous-API
M-Card API (through wrapper on top of PC/SC)
Operating Systems Windows® XP/Vista/7/8 (32&64Bit)
Windows® Server 2003/2008/2008 R2/2012
Windows® CE 6.0, 7.0
MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x
Linux 2.4.x, 2.6.x (32&64Bit)
Android 2.3 above
Cable 1.5m long with USB type A connector
Dimensions LWH 70 x 50 x 15 mm
Weight 80g
Operating Conditions Temperature : 0 to 50°C
Humidity : 90% (non-condensing)
Approvals FCC Class B part 15, cULus, CE, VCCI
ICES-003 Issue4, ClassB
USB-IF
Microsoft WHQL 2000, XP, Server2003
EMV 2000 Level 1
RoHS, WEEE
REACH compliance

同梱品一覧


USB-MCR3513
Unit price: USD 35
USB-MCR3513
(スマートカードリーダ用モジュール) x1
