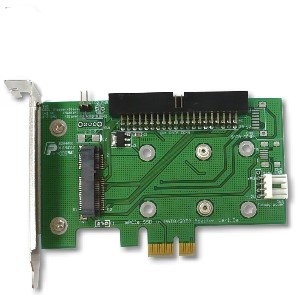

MP2S-P (mPCIe SSD to PATA adapter ver1.0a)
Introduction:

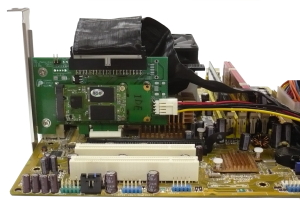

MP2S-P is passive adapter design for Desktop SSD solution. That converts custom mPCIe SSD to PATA connector on main-board.
The adapter will allow you to use mPCIe SSD card as a hard drive on your PATA/IDE motherboard.
MP2S-P |
 |
Features
- allows user to use custom mPCIe SSD to PATA connector in the Desktop
- Compatible with MINI PCI-E SSD Module of ASUS EEEPC
- Support PATA interface.
- Power LED. PATA active LED
Notice:
The SSD module is controlled via the PATA interface to the main-board. And not the PCIE bus . It only requires power from the PCIE bus or Floppy connector.
As a result PCIE connector existing nets on the PCB which are power connecting only.
Almost mPCIe SSD just only support master mode. So please setting your another IDE device on slave mode if you have. Such as HDD/CD-ROM.
| Package Contents: | |
MP2S-P (mPCIe SSD to PATA adapter ver1.0a) x1 |
External 5V/12V power supply x1 |
PATA 80pin cable x1 |
JP0155 (Standard Height PCI express bracket) x1 |
Screw x2 |
|
System Requirements
- Windows 2000, XP, Vista,Windows 7, Server 2008
- Linux
| MP2S, SSDMA, SSDMB for SSD minicard comparison 2010/Mar/15 | ||||
| Functions comparison | MP2S-P ver1.0a |
MP2S ver 1.0b |
SSDMA |
SSDMB |
Interface |
PATA |
PATA / SATA |
USB2.0 |
USB3.0 |
PATA SSD minicard support |
Yes |
Yes |
Yes |
No |
SATA SSD minicard support |
No |
Yes |
Yes |
Yes |
Access LED |
external |
Yes |
Yes |
Yes |
Appearance |
Add-on card |
Add-on card |
Enclosure |
Enclosure |
MiniCard dimension support |
Full/Custom |
Full/Custom |
Full |
Full |
